LM358

LM358, operational amplifier, 32V, 40mA, SOP-8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.18~0.20

PartNumber:: LM358

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. wang's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-26

From Other Seller

Part Number:LM358
US $0.18 - 0.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

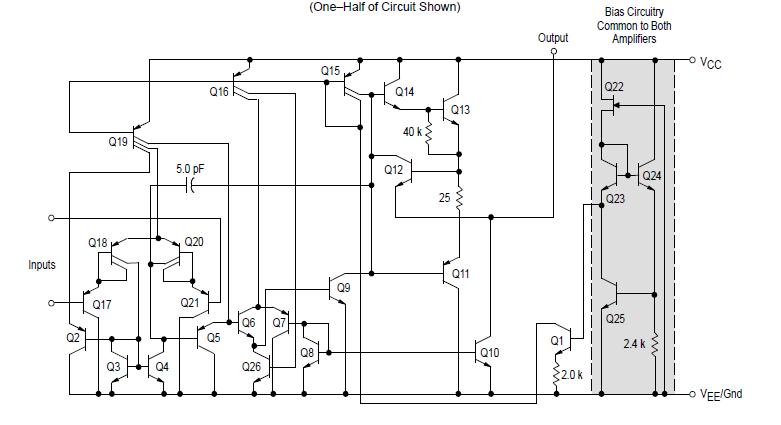

The LM358 is a dual low power operational amplifier. Utilizing the circuit designs perfected for recently introduced Quad Operational Amplifiers, the LM358 features include low power drain, a common mode input voltage range extending to ground/VEE, single supply or split supply operation and pinouts compatible with the popular MC1558 dual operational amplifier.

Parametrics

LM358 absolute maximum ratings: (1)Power supply voltages single supply, VCC: 32V; (2)Split supplies, VCC, VEE: ±16V; (3)Input differential voltage range, VIDR: ±32V; (4)Input common mode voltage range, VICR: –0.3 to 32V; (5)Output short circuit duration, tSC: continuous; (6)Junction temperature, TJ: 150℃; (7)Storage temperature range, Tstg: –55 to +125 ℃; (8)Operating ambient temperature range, TA: 0 to +70℃.

Features

LM358 features: (1)Short circuit protected outputs; (2)True differential input stage; (3)Single supply operation: 3.0 V to 32 V; (4)Low input bias currents; (5)Internally compensated; (6)Common mode range extends to negative supply; (7)Single and split supply operation; (8)Similar performance to the popular MC1558; (9)ESD clamps on the inputs increase ruggedness of the device without affecting operation.
